Maersk Cold Storage Facility – Ruakura Superhub

Maersk’s Ruakura cold store features a BRANZ-appraised, solar-ready TPO warm roof system with Kingspan insulation, installed with ARDEX support.

Maersk Cold Storage Facility – Ruakura Superhub

Overview

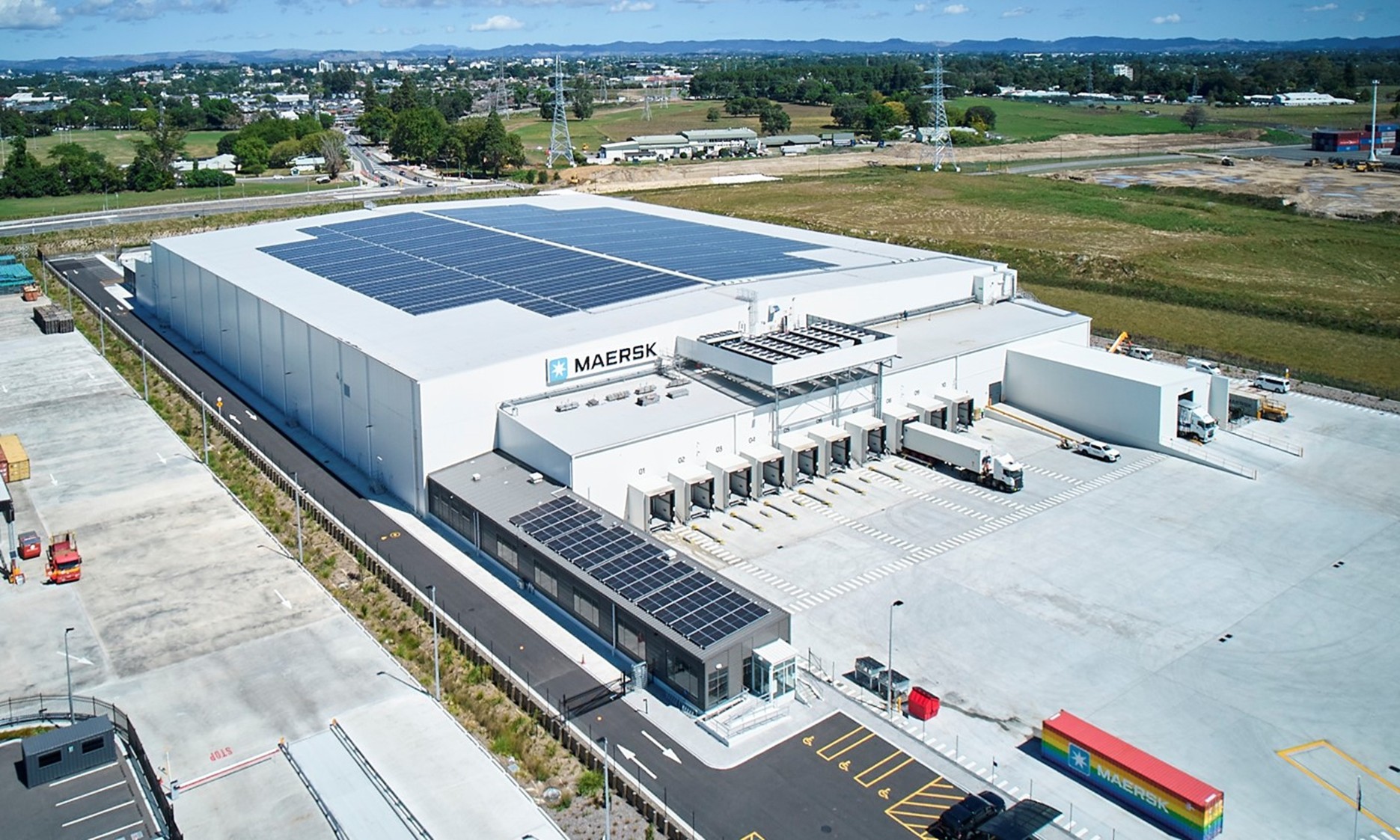

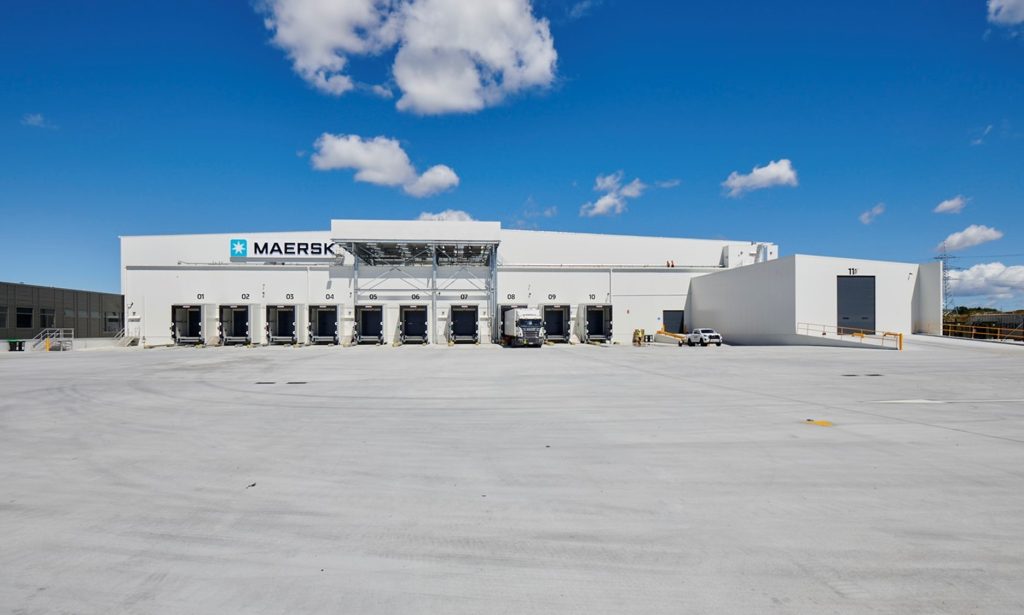

Maersk cold store facility at Ruakura Superhub in Hamilton required a robust, compliant roof for a new logistics facility. ARDEX NZ supplied 16,000 m² of Elevate UltraPly TPO, installed with a warm roof system using Kingspan thermal insulation panel. The system is BRANZ Appraised and includes an Environmental Product Declaration. Solar ready accessories such as Ejobars enabled immediate installation of solar panels after project completion. ARDEX NZ provided national technical support and on-site guidance.

Client and Project
Client: AP Moller Maersk
Main builder: Apollo Projects
Installer: Watertight Roofing

Roof size area: 16,500 m²
Location: Ruakura Superhub, Hamilton
Completion: February 2024

Scope

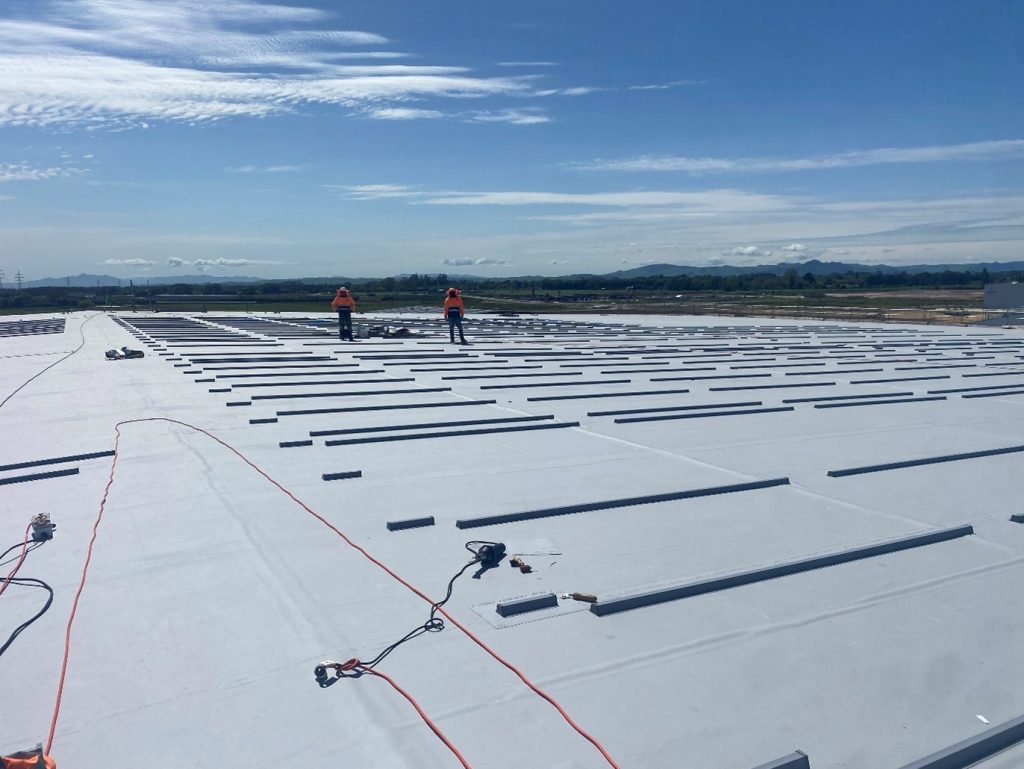

16,500 m² of Elevate UltraPly TPO supplied and installed as a warm roof system with Kingspan PIR Cold Store Panels. Solar panels installed at completion.

Solution
Elevate UltraPly TPO was chosen for proven durability, efficient installation, and compliance. The warm roof system supports energy efficiency and future solar integration. ARDEX NZ coordinated supply and technical support throughout construction.

Results
Project completed February 2024. The roof delivers a continuous, weldable membrane and supports solar energy.

Technical Details and Compliance
Product: Elevate UltraPly TPO (Adhered System)
System: Warm Roof with Kingspan PIR Cold Store Panels
Compliance: Compliance: BRANZ Appraised No.728 and compliance to NZBC E2 / B2 / F2
Sustainability: Environmental Product Declaration (EPD) for Elevate UltraPly TPO membrane
Accessories: Solar ready Ejobars, Elevate pipe flashing for pipe penetrations and pourable pockets

Warranty and Support
ARDEX Warranty for 20 years. Contact ARDEX NZ for specification or support.

References
Enviromental Product Declaration PDF
Elevate UltraPly TPO Information Download Link
