Tiling
Projects
WAI ARIKI HOT SPRINGS & SPA
A beautiful and functional project delivered in a challenging geothermal location, Wai Ariki is a luxury spa located on the shores of Lake Rotorua, built on the legacy of Māori culture and Ngāti Whakaue healing practices. RCG Architects have worked with ARDEX previously and were confident in specifying trusted ARDEX waterproofing systems for the Wai Ariki project. As Wai Ariki sits on an active geothermal field ARDEX WPM 1500 specialist tanking and gas barrier membrane was specified across 7000m² to prevent the sulphur gas and water beneath from corroding the concrete. ARDEX WPM 1500 is made here in New Zealand and is specifically tested for our geothermal regions, so was the ideal selection for this project.
RCG Architects also needed to ensure the appropriate products were specified to ensure effective waterproofing of wet areas. ARDEX WPM 002 Two Component Undertile Liquid Waterproofing Membrane was used for floors, floor channels, swimming pools and shower areas within Wai Ariki. In total 3000m² of tiling was installed including ARDEX X 10 Flexible Non Slump Wall and Floor Tile Adhesive and ARDEX X 18 Fibre Reinforced Wall and Tile Adhesive. ARDEX EG 15 High Performance Epoxy Grout was also used for areas such as the stunning glass mosaics within pools. One of the major benefits to using ARDEX EG 15 is that it will not discolour after prolonged contact with the pool chemicals helping to maintain a clean, aesthetic look.
Photography by Jono Parker
www.jonoparker.com | @parker | +64 21 235 6006
Products used for this project
-
ARDEX WPM 1500
WeldTec Below-Grade Tanking Membrane
- Welded laps and seams for fast and secure installation
- Excellent flexibility at all temperatures
-
ARDEX WPM 002
Rapid-Drying, Two-Part Undertile Waterproofing Membrane
- Advanced acrylic – will not re-emulsify
- Rapid drying time
-

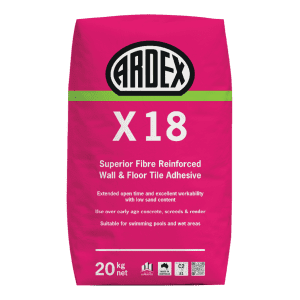

ARDEX X 18
Fibre Reinforced Flexible Non Slump Wall and Floor Tile Adhesive
- Fibre reinforced for extra strength and peace of mind
- Excellent workability with low sand content
-
ARDEX X 10 Grey
Flexible Non Slump Wall and Floor Tile Adhesive
- Non slump – ideal for large format and heavy tiles
- Extended open time
-
ARDEX EG 15
High-Performance Epoxy Grout
- Suitable for areas of strict hygiene standards
- Easy clean up
-
ARDEX A 46
Rapid Drying, Slump-Free Mortar for External Repairs
- For external repairs to concrete floors, walls and stairs
- Quick Drying - Trafficable after 2-3 hours
-
ARDEX WPM 163
Water-Resistant Penetrative Sealer
- Single component polyurethane dispersion sealer
- Can be applied to damp surfaces
-
ARDEX CA 20 P PLUS
Multipurpose Construction Adhesive & Sealant
- High initial tack and bond strength
- Can be used underwater
-
ARDEX WPM 300
Water Based Epoxy Membrane
- Adheres to damp surfaces and freshly laid green concrete
- Prevents rising damp & efflorescence
-
ARDEX WA 100
Epoxy Adhesive for Natural Stone Tiles
- Capable of withstanding vibrating movements
- Strong, permanent bond
